Lineup

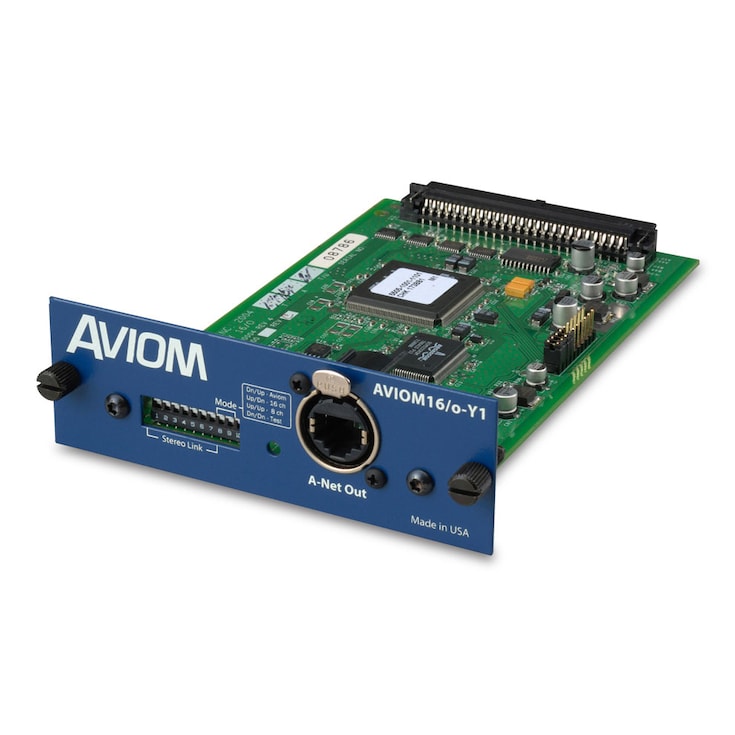

AVIOM16/O-Y1AVIOM A-net
16-Channel Pro16 A-Net Network Output Card
- 1x A‑Net output, 1x EtherCon® RJ45 connector
- 44.1/48kHz SR, 24-bit uncompressed digital data
- Channel Link DIP switches for stereo operation
- Unlimited splits and lossless digital copies
- Cat-5e cable runs up to 500 feet (150 meters)

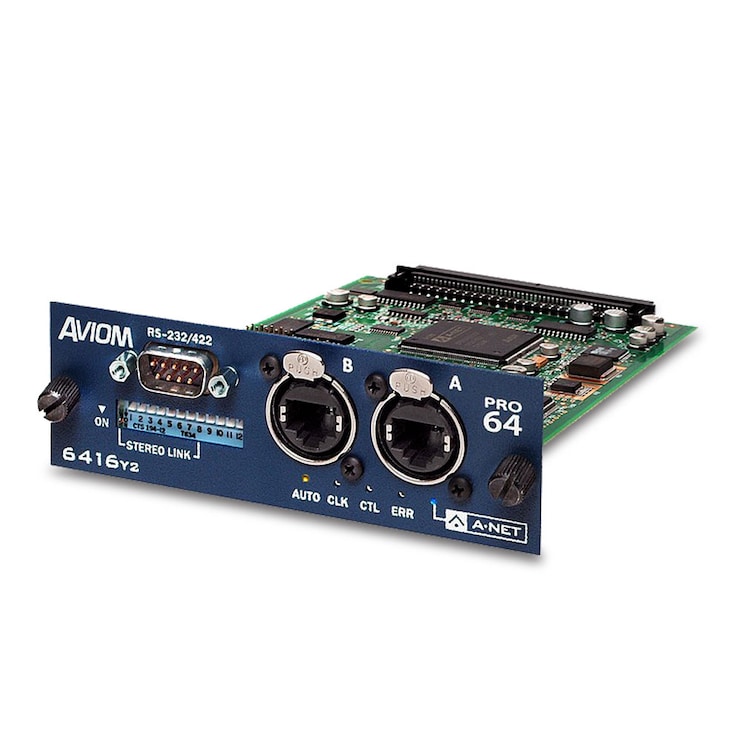

AVIOM6416Y2AVIOM A-net
16-Channel Pro64 A-Net Network I/O Card
- Up to 16 channels in and 16 channels out simultaneously
- Variable sample rates: 44.1/48kHz or 88.2/96kHz
- Robust clocking allows simple consoleto-console digital connections
- Remote control gain for up to 64 channels of 6416m preamps directly from the Yamaha console
- RS-232/RS-422 Virtual Data Cable I/O (compatible with Yamaha remote control protocol)
- Stereo Link per channel pair for Aviom Pro16® Personal Mixers
YG2Optocore
16-Channel Optocore Network I/O Card
- 16In/16Out Audio Channels through console slot (miniYGDAI)
- Word clock from/to YGDAI slot, from/to Network and word clock transport to any device in the network
- 10/100 MBit Ethernet Virtual Switch to any Optocore device featuring Ethernet
- 2 RS422 ports for direct transport of Yamaha HA Remote protocol via Optocore
- 1 "Sub" port to connect to YS2 card for enlargement of audio channels up to 64In/64Out (32In/32Out @ 96kHz)
- 2 pluggable optical LC Transceivers, single- or multimode is user changable
- 1 RS232/1USB port for Optocore Control Software
- Upgradeable internal logic

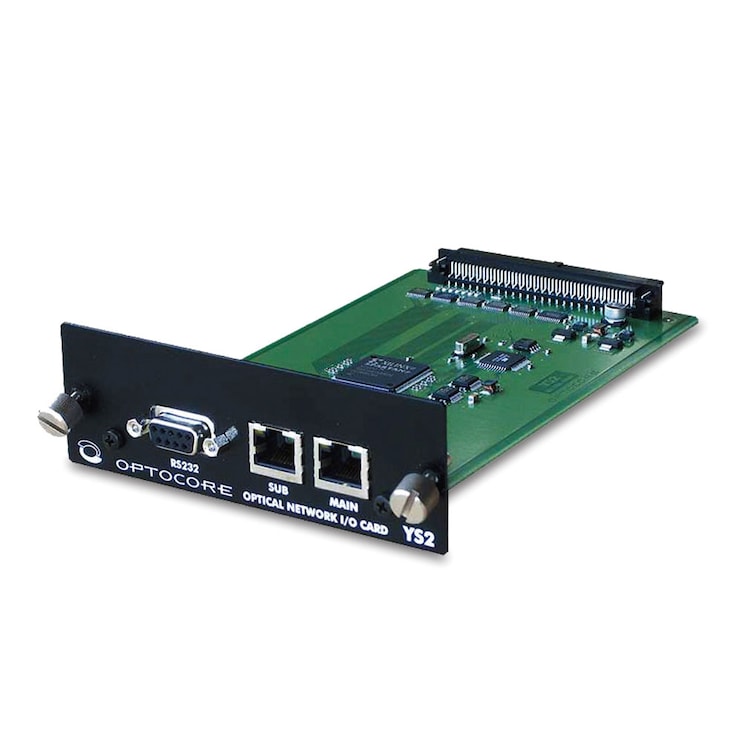

YS2Optocore
16-Channel Optocore I/O Expansion Card for YG2
- 16In/16Out Audio Channels through console slot (miniYGDAI)
- 1 "Main" port to connect to YG2 card or YS2 card in cascade
- 1 "Sub" port to connect to YS2 card in cascade for enlargement of audio channels up to 64In/64Out (32In/32Out @ 96kHz)
- 1 RS232 port to upgrade internal logic
* Specifications are subject to change without notice. The colors and finishes shown may vary from those on the actual products.
