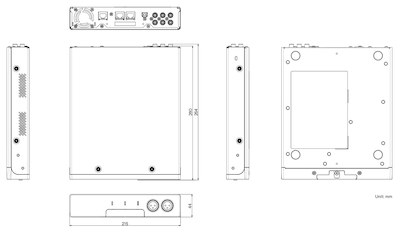

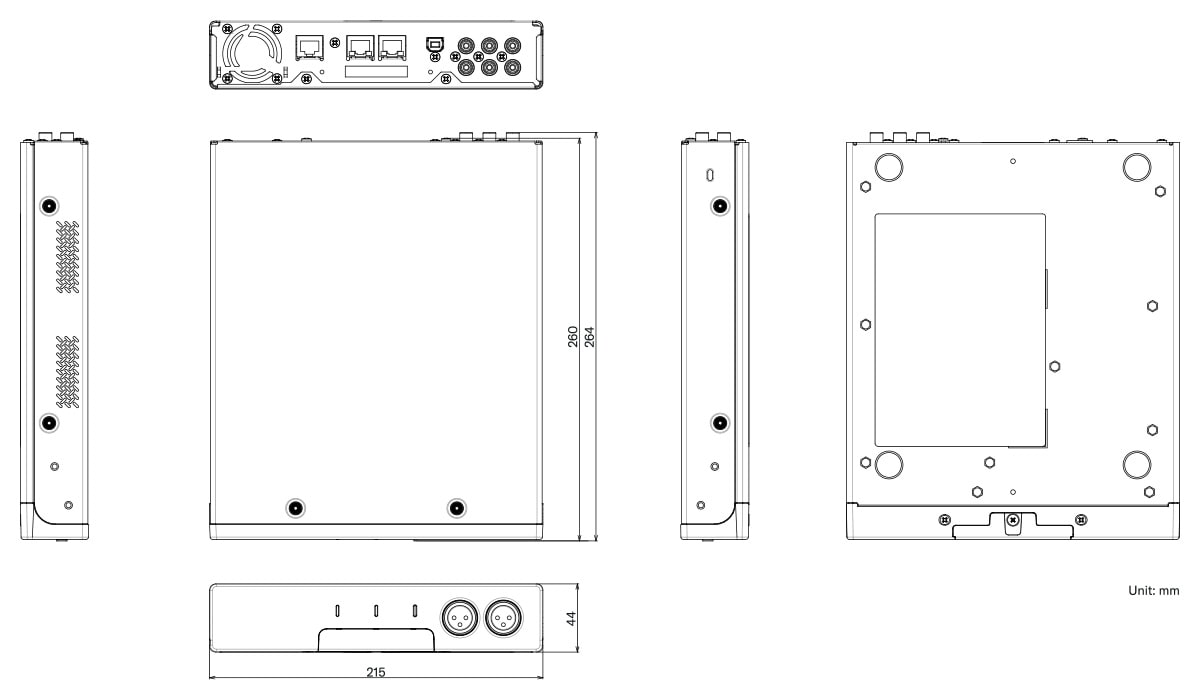

| General | Dimensions | W 215 mm × D 260 mm × H 44 mm | |
|---|---|---|---|
| Weight | 1.6 kg | ||
| Supported OS | Windows 11, Windows 10 (32 bit/64 bit), Windows 8.1 (32 bit/64 bit), macOS 12, macOS 11, macOS 10.15 | ||
| Power Requirements | PoE+ (IEEE 802.3at, LLDP), DC 48 V | ||
| Maximum Power Consumption | 15.0 W | ||

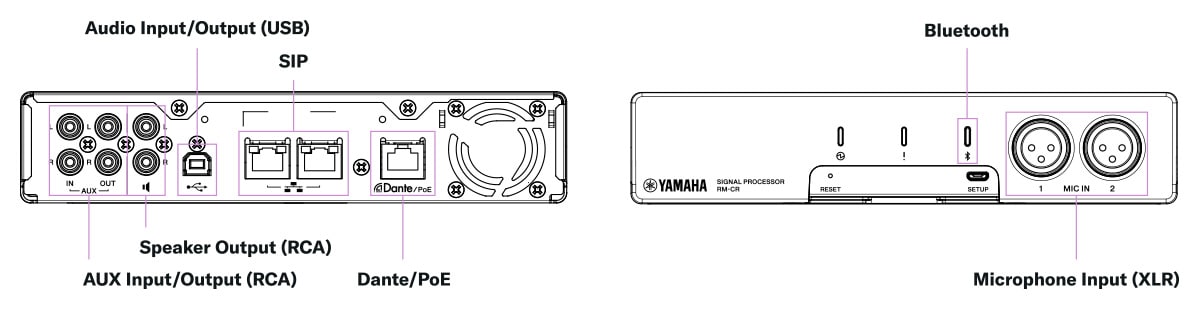

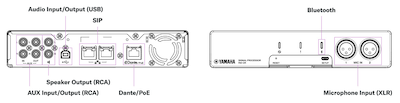

| Connector | RJ 45, USB, XLR balanced, RCA | ||
| In Operation | Temperature | 0 - 40 ℃ | |
| Humidity | 30 % - 90 % (No condensation) | ||
| Storage | Temperature | -20 - 60 ℃ | |
| Humidity | 20 % - 90 % (No condensation) | ||
| Indicator | Power Indicator, Status Indicator, Bluetooth Indicator, Network Port Indicator (x3) | ||
| Mount | Table Mount, Rack Mount | ||
| Maximum Device Number with RM-CR | - | ||
| Accessories | Installation Manual, USB Cable (A-B) 5 m (16.4 ft), USB Cable (A-micro B) 1 m (3.3 ft), 4x Rubber foot, Access Panel | ||
| Options | RM-MTL: Table Mount Kit, RM-MRK: Rack Mount Kit | ||
| Network Specifications | Ether1 | Dante Audio/Dante Control, Remote Control, WebUI, PoE+ | |
| Ether2/Ether3 | Corporate Network, Remote Control, SIP, Web UI | ||
| USB | USB2.0, Network Class, Web UI, Fixed IP | ||
| Audio Specifications | Audio I/O | Dante | 16in/16out |
| USB | USB2.0, Audio Class 1.0, Input: 2 ch, Output: 2 ch @48 kHz | ||
| Mic Input | XLR balanced, Input 2 ch | ||
| AUX | RCA unbalanced (Line Level), Input: 2 ch, Output: 2 ch | ||
| Speaker Out | RCA unbalanced (Line Level), Output: 2 ch | ||
| Bluetooth | Version | Bluetooth 4.2 | |
| Supported Profiles | HFP (1.6), A2DP, AVRCP | ||
| Supported Codec | CVSD, SBC, mSBC | ||
| Wireless Output | Class2 | ||
| Maximum Communication Distance | 10 m (32.8 ft) (no obstacles) | ||
| Radio Frequency (Operational Frequency) | 2,402 to 2,480 MHz | ||
| Maximum Output Power (EIRP) | 4.0 dBm (2.5 mW) | ||
| SIP | Call Handling | Dial, Answer, Hold, Resume, Forwarding, Do not disturb, Call ID, Voice Mail Notifications (switch configured) | |
| Call Bridging | Supports Bridging SIP, USB, BT and AUX Calls. Join, Split, Hold, Resume, 5+1 Lines: Up to 2 SIP calls, 1 USB call, 1 Bluetooth Call, 1 AUX, plus the user | ||
| Codecs | G.711, G.722HD, G.729ab, G.726 | ||
| DTMF Support | RTP event, SIP in-band, SIP info package | ||
| Security | SRTP Support (RFC 1889), IETF SIP support(RFC 3261 and companion RFCs) | ||
| Sampling Rate | 48 kHz | ||
| Bit Depth | 24 bit | ||
| Latency | 8 [ms] (Dante In to USB Out, includes signal processing) | ||
| Frequency Response | 20 Hz – 20 kHz | ||
